Understanding Your Home’s Plumbing System: A Comprehensive Guide for Homeowners


Every homeowner knows that maintaining a home involves more than just cleaning and decorating. One of the most crucial aspects of home maintenance is understanding your home’s plumbing system. This system, often hidden behind walls and under floors, is the lifeblood of your home. It brings in fresh water for drinking, cooking, and cleaning, and it carries away waste water safely and efficiently.

Understanding your home’s plumbing system is not just about being able to do minor repairs or prevent leaks, although those are important skills. It’s about being an informed homeowner who can make better decisions about home maintenance, renovations, and improvements. It’s about knowing when you can handle a problem yourself and when you need to call a professional.

There are several benefits to being knowledgeable about your home’s plumbing system. First, you can save money by doing simple repairs yourself instead of calling a plumber. Second, you can prevent small problems from becoming big, expensive ones by catching them early. Third, if a problem does occur, you’ll be able to provide accurate information to your plumber, which can make the repair process smoother and faster.

In this comprehensive guide, we will delve into the intricacies of your home’s plumbing system, helping you understand its components, how they work, and how to maintain them. Whether you’re a new homeowner or have been in your house for years, this guide will provide valuable information to help you take care of your home.

The Basics of Home Plumbing Systems

Plumbing systems can seem complex and intimidating, but they’re actually based on simple principles of gravity and pressure. Let’s break down the basics.


The Water Supply System

The water supply system is responsible for bringing fresh water into your home. This water comes from a municipal supply or a private well and enters your home under pressure. It travels through a network of pipes to reach every faucet, shower, and toilet in your home.

Key components of the water supply system include:

  • Main water shutoff valve: This is the most important valve in your home. It controls the flow of water into your home and can be turned off in case of a major leak or when you’re doing plumbing repairs.
  • Water meter: If your water comes from a municipal supply, you’ll have a water meter that measures your water usage for billing purposes.
  • Pipes: Pipes made of copper, PVC, or PEX carry water throughout your home. The size and material of the pipes can affect water pressure and flow.
  • Valves and fittings: These components control the flow of water to different parts of your home and connect different sections of pipe.
One of our plumbers replaces the top of a toilet tank after adjusting the water level for a homeowner here in Chicago.

The Drain-Waste-Vent System

Once water has been used, it needs to be removed from your home. This is the job of the drain-waste-vent (DWV) system.

Key components of the DWV system include:

  • Drains and waste pipes: These carry waste water and solid waste away from your home. They’re designed to use gravity, so they’re always sloped downward.
  • Vent pipes: These allow sewer gases to escape from your home and let air into the drain pipes to keep water flowing smoothly.
  • Traps: These are curved sections of pipe under sinks and other fixtures. They hold a small amount of water that prevents sewer gases from entering your home.

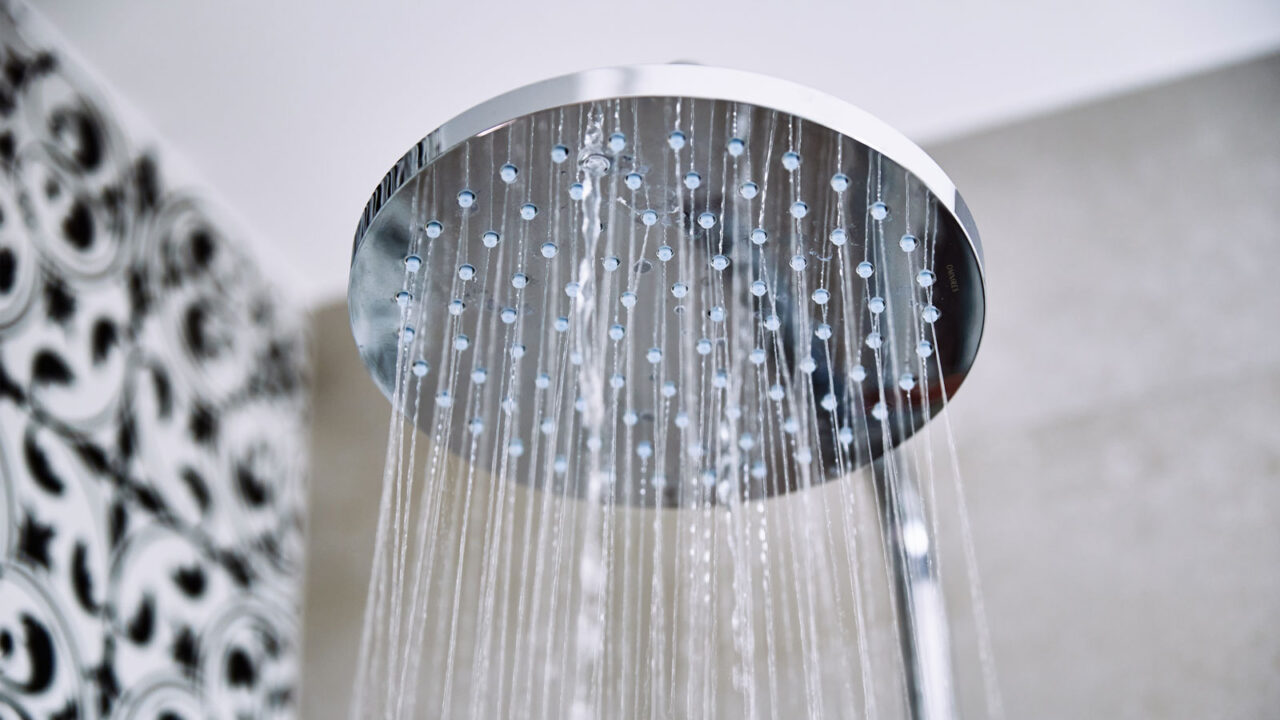

shower-head in Northern Indiana

The Fixture System

The fixture system includes all the appliances and fixtures that use water. This includes sinks, toilets, showers, bathtubs, washing machines, dishwashers, and water heaters. Each of these has its own specific plumbing requirements, which we’ll cover in more detail later in this guide.

In the next section, we’ll look at the materials used in plumbing systems, including the different types of pipes and valves. Understanding these materials can help you make informed decisions about repairs and upgrades.

Common Plumbing Materials

Just as important as understanding the function of your home’s plumbing system is knowing the materials that make up its infrastructure. Different materials have different strengths, weaknesses, and uses, so let’s take a closer look.

Types of Pipes

Pipes are the arteries and veins of your home’s plumbing system. They carry fresh water in and waste water out. There are several types of pipes, each with its own advantages and disadvantages:

  • PVC (Polyvinic Chloride) Pipes: These are commonly used for both water supply lines and drain, waste, and vent (DWV) pipes. They’re lightweight, easy to work with, and resistant to corrosion.
  • Copper Pipes: These are often used for water supply lines due to their long lifespan and resistance to corrosion. However, they’re more expensive than PVC pipes and require soldering to join.
  • PEX (Cross-Linked Polyethylene) Pipes: These are increasingly popular for water supply lines. They’re flexible, easy to install, and resistant to both corrosion and freezing.
  • Cast Iron Pipes: These are typically used for DWV pipes in older homes. They’re durable and quiet (they reduce the sound of flowing water), but they can be prone to rust over time.

Types of Valves

Valves control the flow of water in your home’s plumbing system. There are several types, including:

  • Gate Valves: These are often used as shutoff valves for the main water supply. They’re durable and reliable, but they can be difficult to turn.
  • Ball Valves: These are also used as shutoff valves. They’re easy to turn and provide a secure seal, but they’re more expensive than gate valves.
  • Check Valves: These prevent water from flowing backward in the system, which can be important in preventing contamination.
  • Pressure Relief Valves: These are used on water heaters and other appliances to prevent excessive water pressure, which can cause damage or leaks.

Understanding the materials used in your home’s plumbing system can help you make informed decisions about maintenance and repairs.

Basic Plumbing Maintenance and Troubleshooting

A well-maintained plumbing system is less likely to experience major problems. Regular maintenance can extend the life of your plumbing fixtures and appliances, and troubleshooting minor issues can prevent them from becoming major headaches. Here’s what every homeowner should know.


Routine Maintenance Tasks

Regular maintenance can keep your plumbing system running smoothly. Here are some tasks you should perform regularly:

  • Check for leaks: Small leaks can turn into big problems. Regularly inspect under sinks, around toilets, and near appliances for signs of leaks.

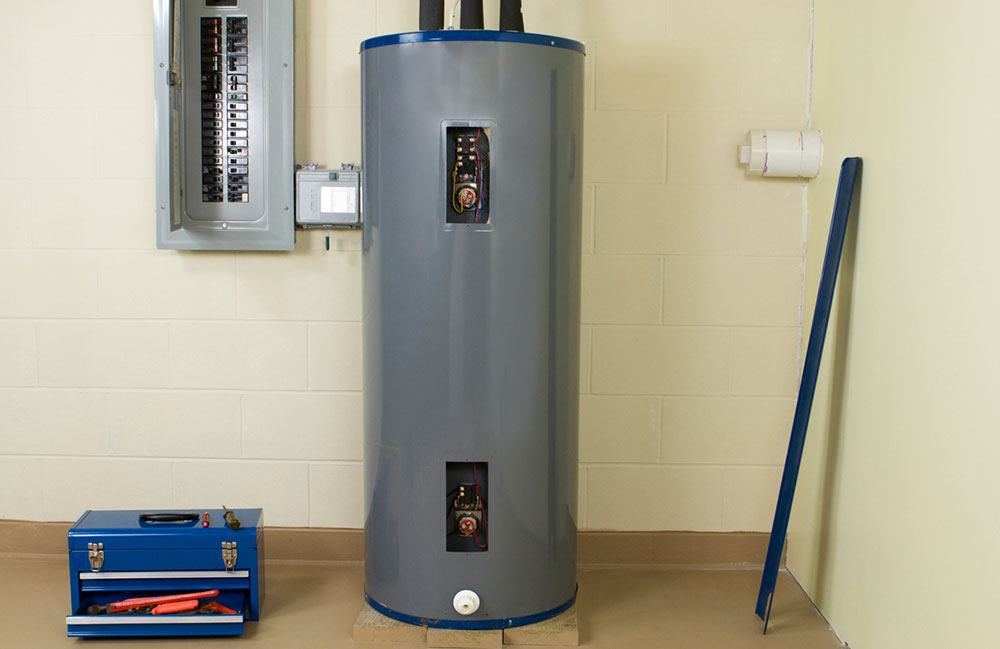

  • Drain your water heater: Sediment can build up in your water heater, reducing its efficiency and lifespan. Draining it annually can prevent this.
  • Clean your drains: Regularly cleaning your drains can prevent clogs. Be careful about what you put down your drains – avoid grease, coffee grounds, and other substances that can build up and cause blockages.
  • Inspect your septic system: If you have a septic system, it should be inspected regularly to ensure it’s working properly.

Common Plumbing Issues and How to Troubleshoot Them

Even with regular maintenance, you might encounter plumbing problems. Here are some common issues and how to troubleshoot them:

  • Low water pressure: This can be caused by a variety of issues, from a blocked aerator to a problem with the water main. Start by cleaning the aerators on your faucets and showerheads. If that doesn’t work, you might need to call a professional.
  • Slow or clogged drains: Try using a plunger or a plumber’s snake to clear the clog. If that doesn’t work, you might need to call a professional. Avoid using chemical drain cleaners, as they can damage your pipes.
  • Running toilet: This is often caused by a problem with the flapper valve, which can usually be replaced easily.
  • Leaky faucet: This is often caused by a worn-out washer. You can usually replace this yourself.

Understanding how to perform basic maintenance and troubleshoot common problems can save you time, money, and stress. However, there are times when it’s best to call a professional. In the next section, we’ll discuss when you should call a plumber.

When to Call a Professional Plumber

While understanding your home’s plumbing system and being able to perform basic maintenance and troubleshooting can save you a lot of time and money, there are situations where it’s best to call a professional plumber. Here are some scenarios where you should seek professional help:

  • Major Installations and Renovations: If you’re installing a new bathroom, kitchen, or appliance that requires plumbing, it’s best to call a professional. They can ensure that everything is installed correctly and meets local building codes.
  • Persistent Leaks: If you’ve tried to fix a leak but it keeps coming back, it’s time to call a plumber. Persistent leaks can cause water damage and mold growth, so it’s important to get them fixed as soon as possible.
  • Low Water Pressure Throughout the House: If you’re experiencing low water pressure in multiple areas of your home, this could indicate a problem with your main water line. A professional plumber can diagnose and fix this issue.
  • No Hot Water: If your water heater isn’t providing hot water, it could be due to a variety of issues that a professional plumber can diagnose.
  • Major Blockages: If you have a major blockage in your drains that you can’t clear with a plunger or plumber’s snake, you’ll need to call a professional. They have specialized tools and expertise to handle this type of issue.

Remember, while it can be tempting to try to handle all plumbing issues on your own, there are times when calling a professional is the best course of action. They have the training, experience, and tools to handle complex issues and ensure that your plumbing system is functioning properly.


Understanding your home’s plumbing system is an essential part of being a homeowner. It can help you maintain your home, prevent and troubleshoot issues, and know when to call a professional. While it may seem complex, with a bit of knowledge and the right tools, you can handle many common plumbing tasks yourself. So, take the time to learn about your home’s plumbing system – your home and your wallet will thank you.
